xDetailed Description:

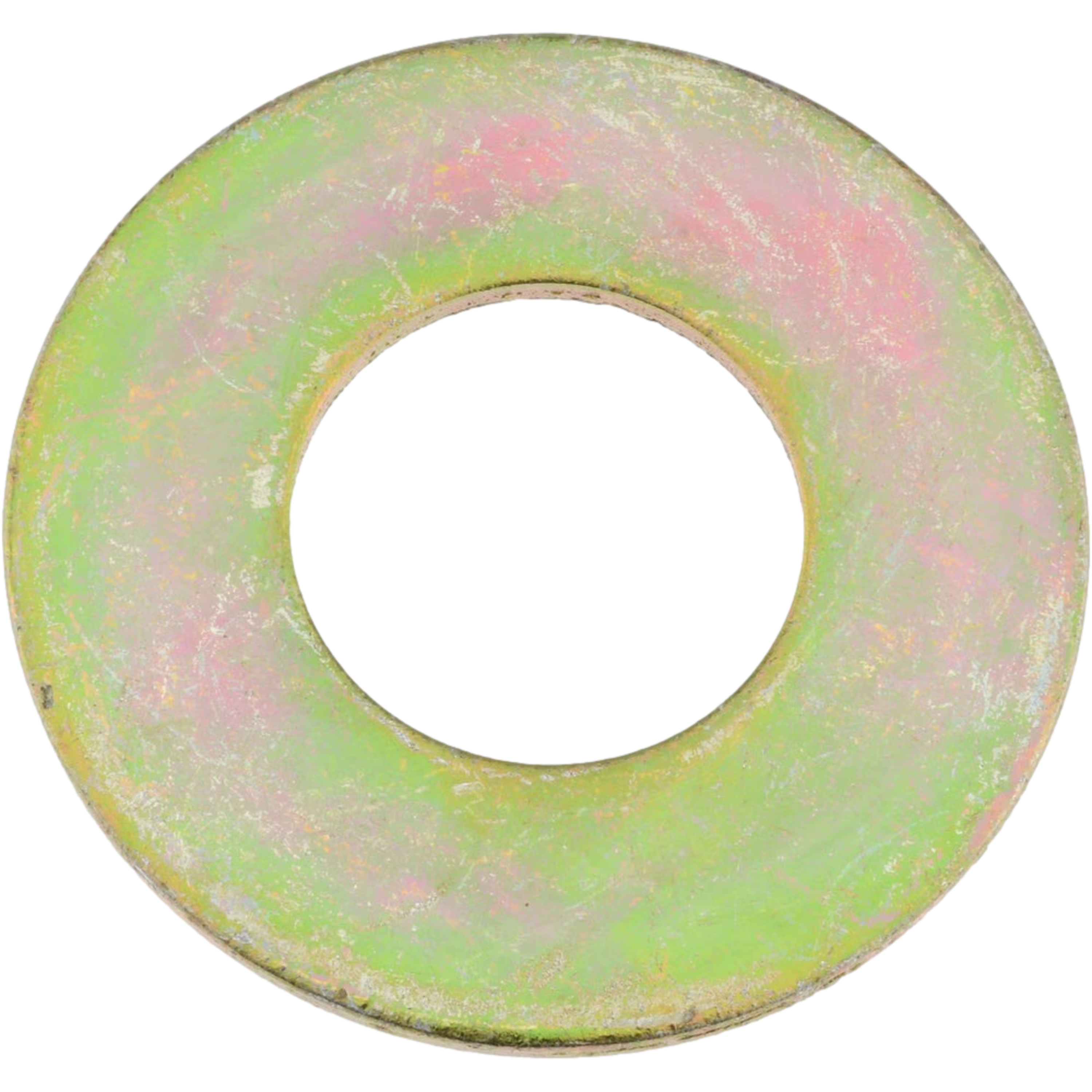

USS Grade 8 Yellow Zinc Plated Flat Washers are high-strength components designed to distribute the load of threaded fasteners, such as bolts and nuts, over a larger surface area. Manufactured from through-hardened Grade 8 steel, these washers offer a Rockwell hardness of C38–45, ensuring durability and resistance to deformation under high stress. The yellow zinc plating provides corrosion resistance, making them suitable for various environments.
Key Features:
-
Material: Through-hardened Grade 8 steel.
-
Finish: Yellow zinc plating for corrosion resistance.
-
Hardness: Rockwell C38–45.
-
Standards: Conforms to ASME B18.21.1 Type A Wide Series and ASTM F436 specifications.
-
Applications: Ideal for use with Grade 8 bolts and nuts in high-stress applications where load distribution and corrosion resistance are critical.
These washers are commonly used in automotive, industrial, and structural applications where high strength and reliability are required.
| Bolt Size | Inside Diameter (in) | Outside Diameter (in) | Thickness Range (in) |
|---|---|---|---|
| 1/4" | 0.307 – 0.327 | 0.727 – 0.749 | 0.051 – 0.080 |
| 5/16" | 0.370 – 0.390 | 0.868 – 0.905 | 0.064 – 0.104 |
| 3/8" | 0.433 – 0.453 | 0.993 – 1.030 | 0.064 – 0.104 |
| 7/16" | 0.495 – 0.515 | 1.243 – 1.280 | 0.064 – 0.104 |
| 1/2" | 0.557 – 0.577 | 1.368 – 1.405 | 0.086 – 0.132 |
| 9/16" | 0.625 | 1.469 | 0.109 |
| 5/8" | 0.649 – 0.687 | 1.743 – 1.780 | 0.108 – 0.160 |
| 3/4" | 0.805 – 0.842 | 1.993 – 2.030 | 0.122 – 0.177 |
| 7/8" | 0.931 – 0.968 | 2.243 – 2.280 | 0.136 – 0.192 |
| 1" | 1.055 – 1.092 | 2.493 – 2.530 | 0.136 – 0.192 |
| 1-1/8" | 1.243 – 1.280 | 2.743 – 2.780 | 0.136 – 0.150 |
| 1-1/4" | 1.368 – 1.405 | 2.993 – 3.030 | 0.136 – 0.192 |
| 1-1/2" | 1.625 | 3.500 | 0.182 |
