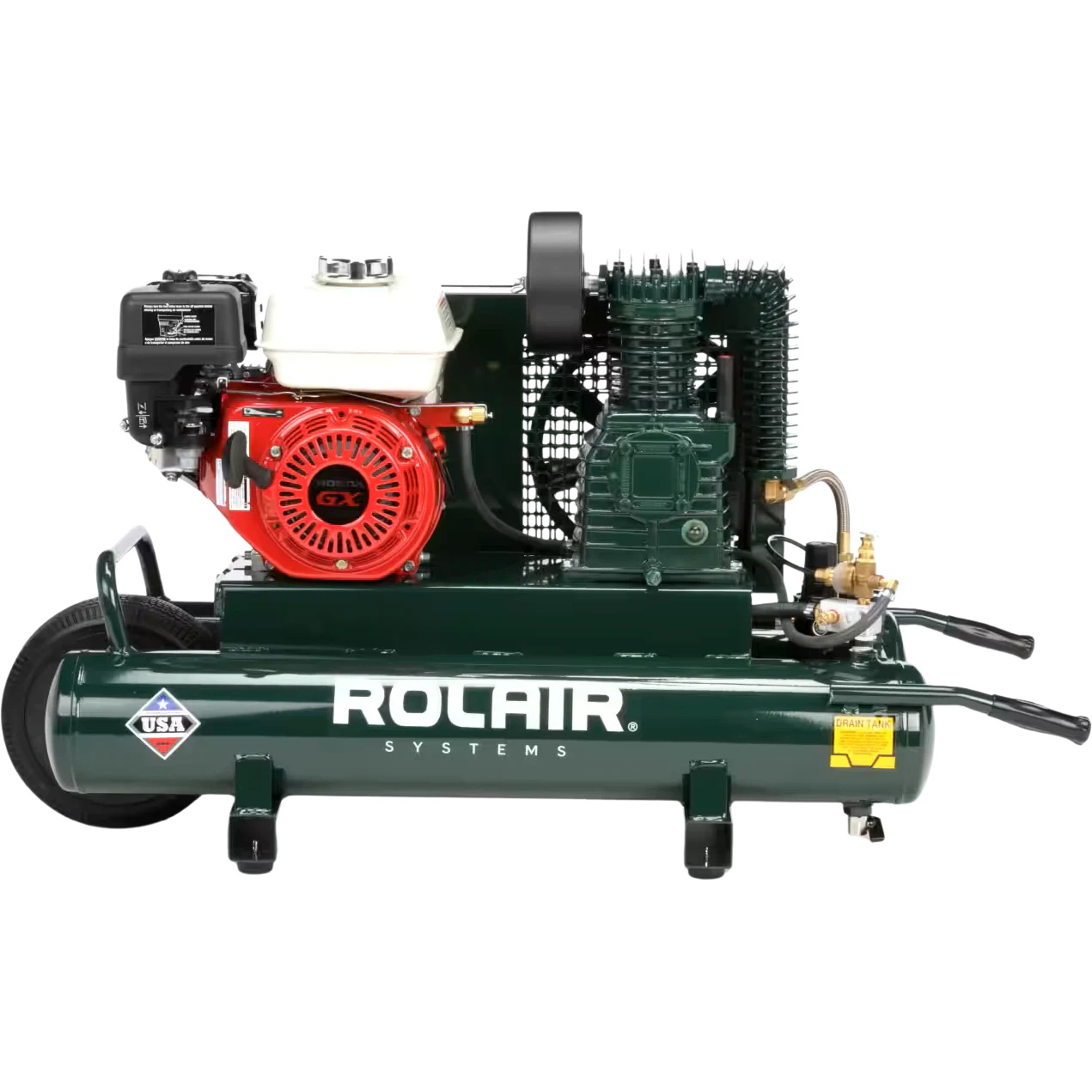

Rolair 4090HK17-0001, 163 cc (5.5 HP) Honda Gas Portable Belt Drive Air Compressor

Rolair 4090HK17-0001, 163 cc (5.5 HP) Honda Gas Portable Belt Drive Air Compressor

$1,363.00
$1,363.00
Free Shipping on orders over $150
Description
Description
x

4090HK17Wheeled Gas Air Compressors

The 4090HK17 gas-powered air compressor has long been the top choice of framing and roofing contractors. In this class, the 4090HK17 stands out because of its high CFM output, portability and rugged build. Delivering 9.3 CFM @ 90 PSI this unit incorporates the popular 163 cc (GX160) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.



ABOUT THE PUMP

  • Heavy-Duty
  • Single Stage
  • Cast-Iron Twin Cylinders
  • Ball Bearings
  • Splash Lubricated
  • Hardened Steel Valve Plates with Swedish Lamellar Reed Valves
  • Aluminum Alloy Connecting Rods with Automotive-Style Inserts
  • Multi-Finned 11" Flywheel
  • Oil Sight Gauge

ABOUT THE ENGINE

  • 163 cc (5.5 HP) Honda 4 Cycle
  • Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve
  • Overheard Valves
  • Retractable Starter
  • On/Off Switch
  • Splash Lubricated
  • Low Oil Shutdown

STANDARD EQUIPMENT

  • Pressure Gauge 0-200 PSI in 5 lb. Graduations
  • Automatic Pilot Valve Operation
  • 110-135 Operating Pressure Range
  • Industrial Flexible Discharge Hose
  • Automatic Idle Control for Fuel Economy and Long Service Life
  • Intake Filter with Silencer and Replaceable Element
  • Schmidt Belt Tightening Device
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Dual Safety Relief Valves

Specifications

Horse Power 163 cc (5.5 HP)
CFM Displaced 13.1 CFM
CFM Delivered 9.3 CFM @ 90 PSI
Lubrication Type Splash Lubrication
Pump Oil Capacity 34 oz.
Reed Valve System Yes (Standard)
Number of Cylinders 2
Tank Capacity 9 Gallons
L X W X H 46"x19"x28"
Decibel Rating Unavailable
Country Of Origin Compressor Origin.pdf
Shipping Weight 185 lb.
Shipping Dimensions (L X W X H) 47" x 22" x 36"



Documents

Document Icon

4090HK17 Schematic

Document Icon

4090HK17 Owner's Manual

Document Icon

4090HK17 Showroom Sheet
