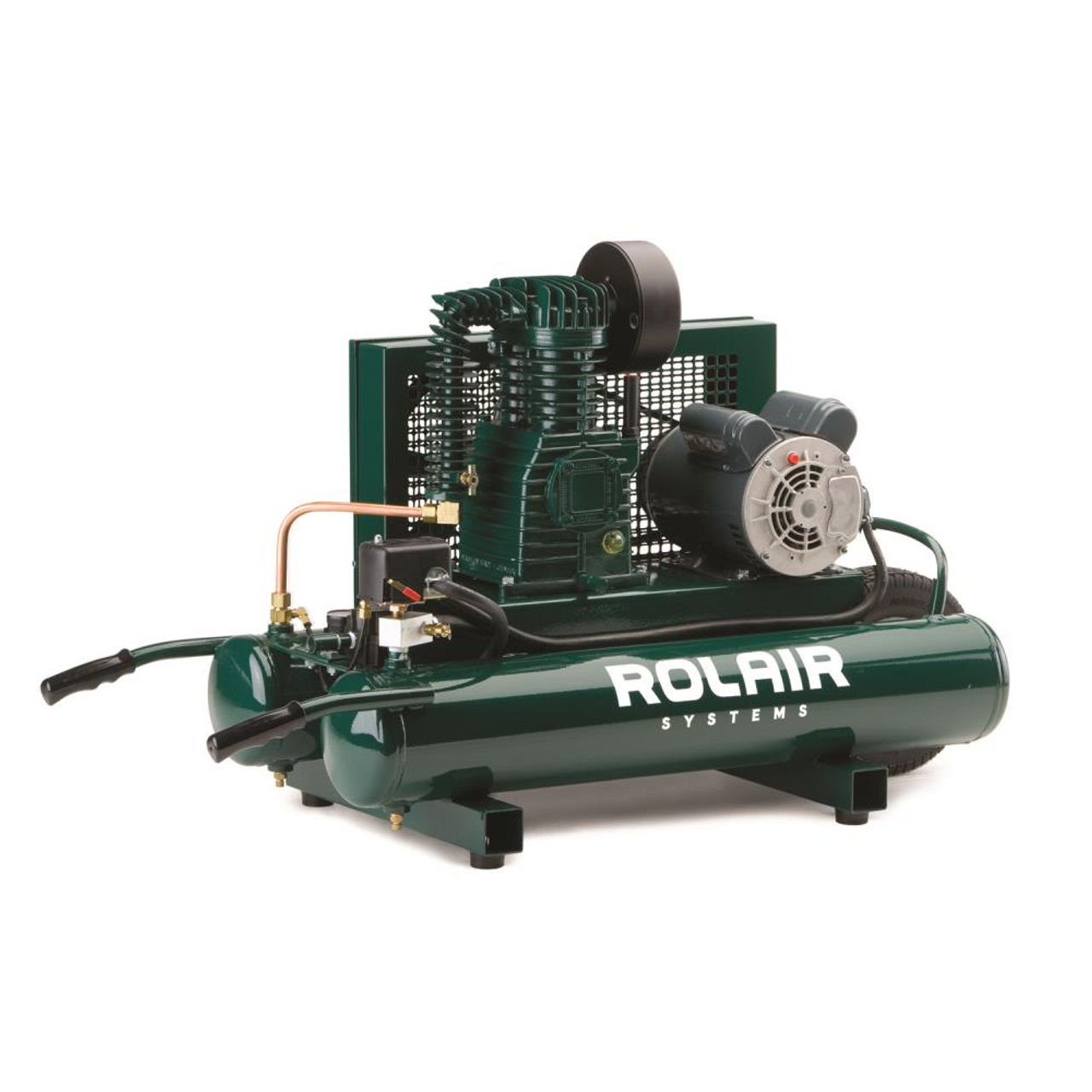

ROLAIR 5715K17-0001 1.5 HP (115V) 7.3 CFM@90PSI 9 Gall Twin Tank Compressor

ROLAIR 5715K17-0001 1.5 HP (115V) 7.3 CFM@90PSI 9 Gall Twin Tank Compressor

$1,164.00
$1,164.00
Free Shipping on orders over $150
Description
Description
x

5715K17Wheeled Electric Air Compressors

Model 5715K17 is the choice when your electric hand-carry unit isn't giving you enough air. Capable of running on a 20 Amp breaker, this model will deliver 7.3 CFM, doubling the output of many direct-drive units. Additionally, the low-RPM pump and motor combine for quiet operation.



ABOUT THE PUMP

  • Heavy-Duty
  • Single Stage
  • Cast-Iron Twin Cylinders
  • Ball Bearings
  • Splash Lubricated
  • Hardened Steel Valve Plates with Swedish Lamellar Reed Valves
  • Aluminum Alloy Connecting Rods with Automotive-Style Inserts
  • Multi-Finned 11" Flywheel
  • Oil Sight Gauge

ABOUT THE MOTOR

  • 1.5 HP
  • 1755 RPM
  • Open Drip Proof
  • 115/230 Volt – 60 Hz
  • Ball Bearings
  • Overload Protection w/Manual Reset

STANDARD EQUIPMENT

  • Pressure Gauge 0-200 in 5 lb. Graduations
  • Square D Pressure Switch with Unloader
  • Accessory Support Clip
  • Intake Filter with Silencer and Replaceable Element
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Safety Relief Valve

Specifications

Horse Power 1.5 HP
CFM Displaced 10.1 CFM
CFM Delivered 7.3 CFM @ 90 PSI
Pump/Motor RPM 1725 RPM
Overload Protection Yes (Manual Reset Standard)
Lubrication Type Splash Lubrication
Pump Oil Capacity 34 oz.
Reed Valve System Yes (Standard)
Number of Cylinders 2
Tank Capacity 9 Gallons
L X W X H 46"x19"x28"
Decibel Rating Unavailable
Country Of Origin Compressor Origin.pdf
Shipping Weight 180 lb.
Shipping Dimensions (L X W X H) 47" x 22" x 36"



Documents

Document Icon

5715K17 Spec Sheet

Document Icon

5715K17 Owner's Manual

Document Icon

5715K17 Schematic
