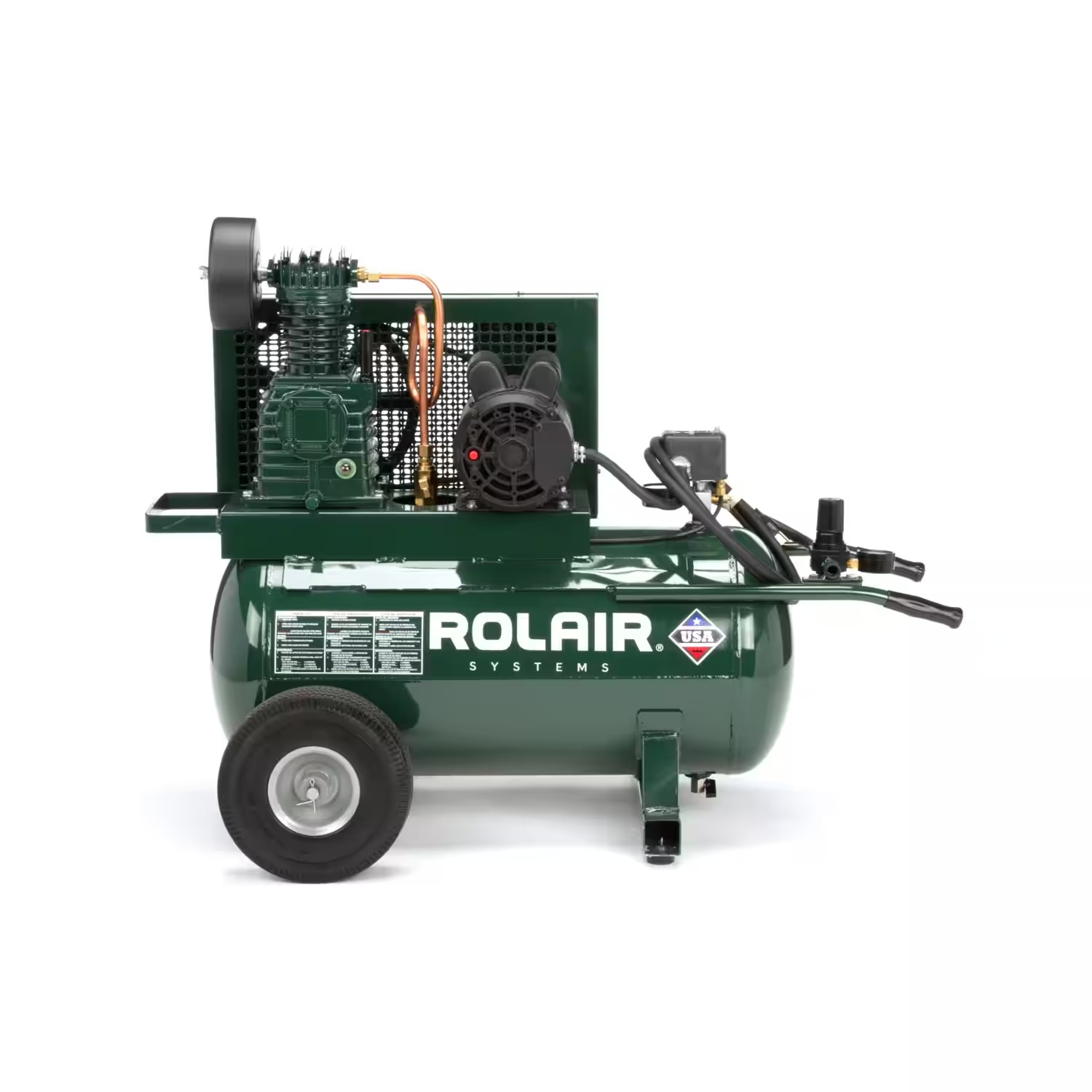

Rolair 5520K17A-0001, 1.5 HP Electric Portable Belt Drive Air Compressor
Rolair 5520K17A-0001, 1.5 HP Electric Portable Belt Drive Air Compressor

Rolair 5520K17A-0001, 1.5 HP Electric Portable Belt Drive Air Compressor

$1,397.00
$1,397.00
Free Shipping on orders over $150
Description
Description
x

5520K17A Wheeled Electric Air Compressor

Model 5520K17A is the step up from our classic 1.5 HP twin-tank wheelbarrow design. Featuring a single 20 gallon tank assembly, the 5520K17A sustains 7.3 CFM @ 90 PSI longer than the traditional 9 gallon twin tank design. The low-RPM pump and motor combine for quiet operation and minimal amp draw.

ABOUT THE PUMP

  • Heavy-Duty
  • Single Stage
  • Cast-Iron Twin Cylinders
  • Ball Bearings
  • Splash Lubricated
  • Hardened Steel Valve Plates with Swedish Lamellar Reed Valves
  • Aluminum Alloy Connecting Rods with Automotive-Style Inserts
  • Multi-Finned 11" Flywheel, Oil Sight Gauge

ABOUT THE MOTOR

  • 1.5 HP
  • 1755 RPM
  • Open Drip Proof
  • 115/230 Volt - 60 Hz
  • Ball Bearings
  • Overload Protection with Manual Reset

STANDARD EQUIPMENT

  • Pressure Gauge 0-200 in 5 lb. Graduations
  • Square D Pressure Switch with Unloader
  • Accessory Support Clip
  • Intake Filter with Silencer and Replaceable Element
  • Totally Enclosed Steel Belt Guard

Specifications

Horse Power 1.5 HP
CFM Displaced 10.1 CFM
CFM Delivered 7.3 CFM @ 90 PSI
Pump/Motor RPM 1755 RPM
Overload Protection Yes (Manual Reset Standard)
Lubrication Type Splash Lubrication
Pump Oil Capacity 34 oz.
Reed Valve System Yes (Standard)
Number of Cylinders 2
Tank Capacity 20 Gallons
L X W X H 42"x22"x34"
Decibel Rating Unavailable
Country Of Origin Compressor Origin.pdf
Shipping Weight 205 lb.
Shipping Dimensions (L X W X H) 47" x 23" x 39"



Documents

Document Icon

5520K17A Schematic

Document Icon

5520K17A Owner's Manual
