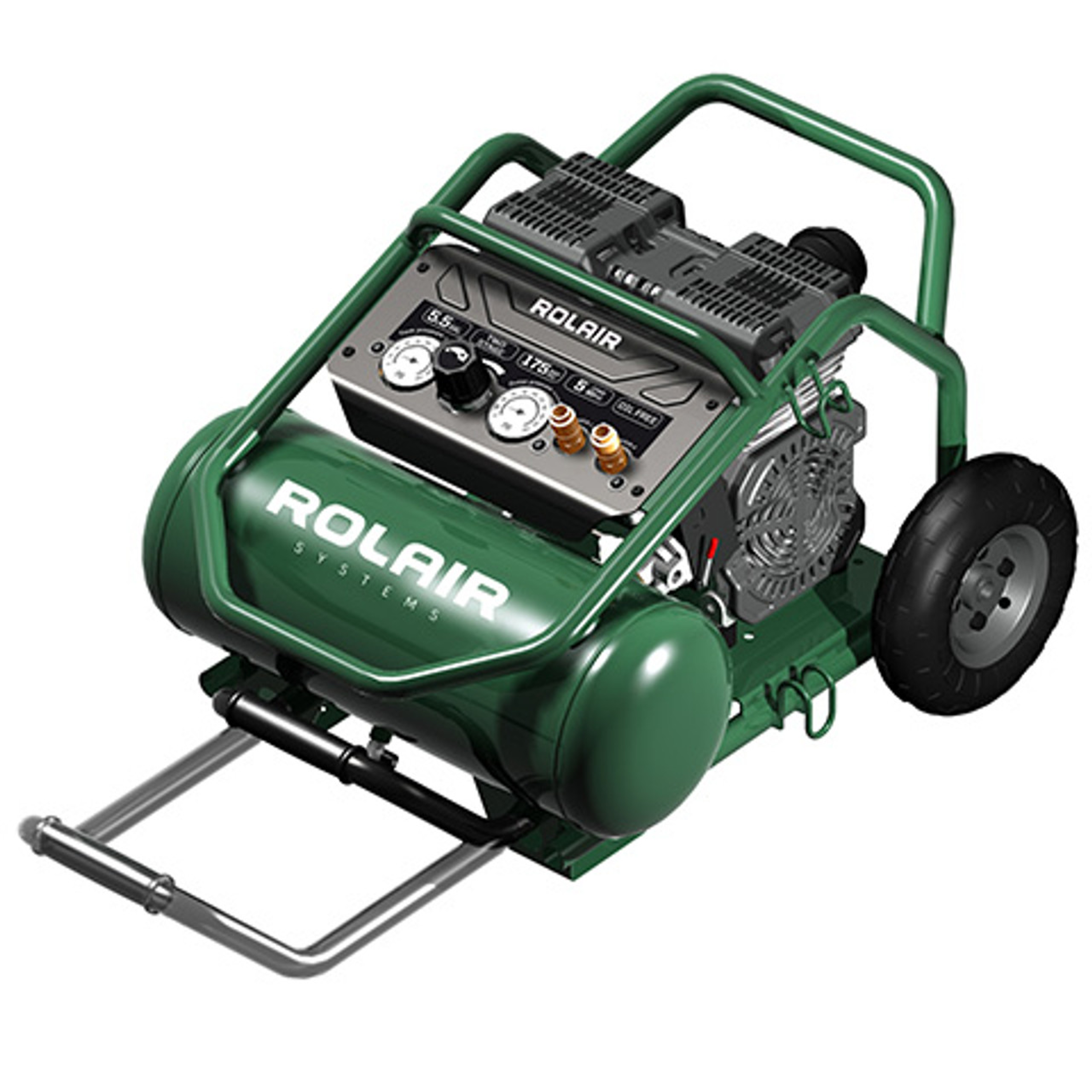

FCOL22LS6Hand Carry Air Compressors

Capable of delivering 5 CFM at 90 PSI, the FCOL22LS6 provides more air than any other model in our oilless lineup. Designed with a true two-stage pump and the ability to operate at up to 175 PSI, this compressor can keep up with a wide variety of tools. It has all the features you’d expect and doesn’t stop there.

You know that feature you wish your portable compressor had? Chances are, the FCOL22LS6 has it. A quiet motor? Check. A low-speed motor pump that will hold up to daily use? Check. What about a protective roll cage? Or an extendable handle and beefy tires so you can maneuver it around the jobsite? Check, check and check.

Don’t settle for the expected. Check off all the features on your air compressor wish list with the FCOL22LS6.

STANDARD EQUIPMENT

---

• 175 PSI Max Pressure
• Oil-Less Pump
• Protective Roll Cage
• Retractable Handle
• Cord Wrap
• Dual Couplers w/ Regulator
• Flat-Free, Solid Tires
• Replaceable Intake Filters

Specifications

---

Horse Power	2 HP
CFM Delivered	5 CFM @ 90 PSI
Pump/Motor RPM	1700
Overload Protection	Yes (Automatic)
Lubrication Type	Oil-Less
Reed Valve System	Yes (Standard)
Number of Cylinders	2
Tank Capacity	5.5 Gallons
Decibel Rating	66 dBA
Shipping Weight	105 lb.
Shipping Dimensions (L X W X H)	29" x 24" x 20"

Documents

---

FCOL22LS6 Owner's Manual

FCOL22LS6 Showroom Sheet
